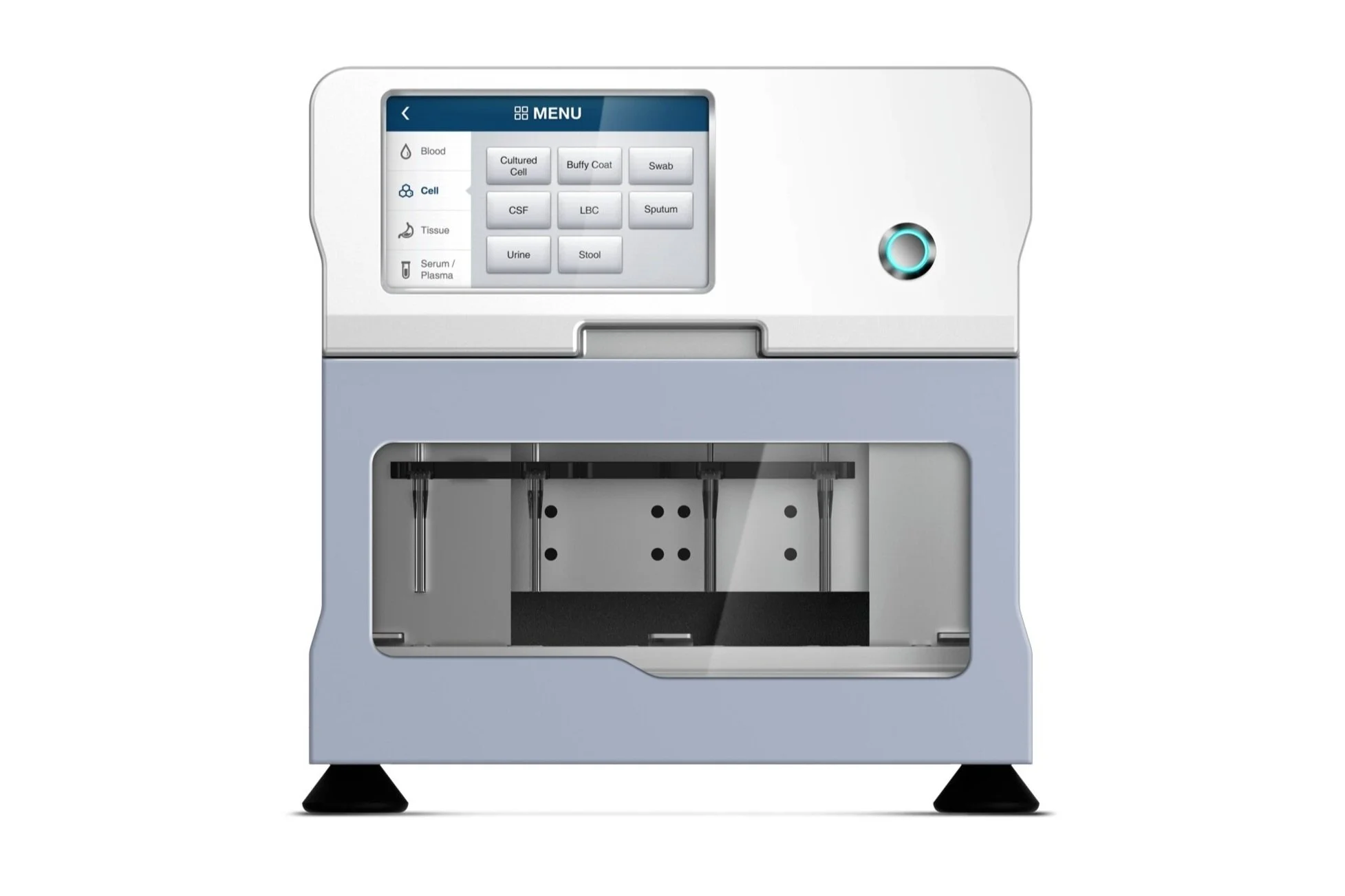

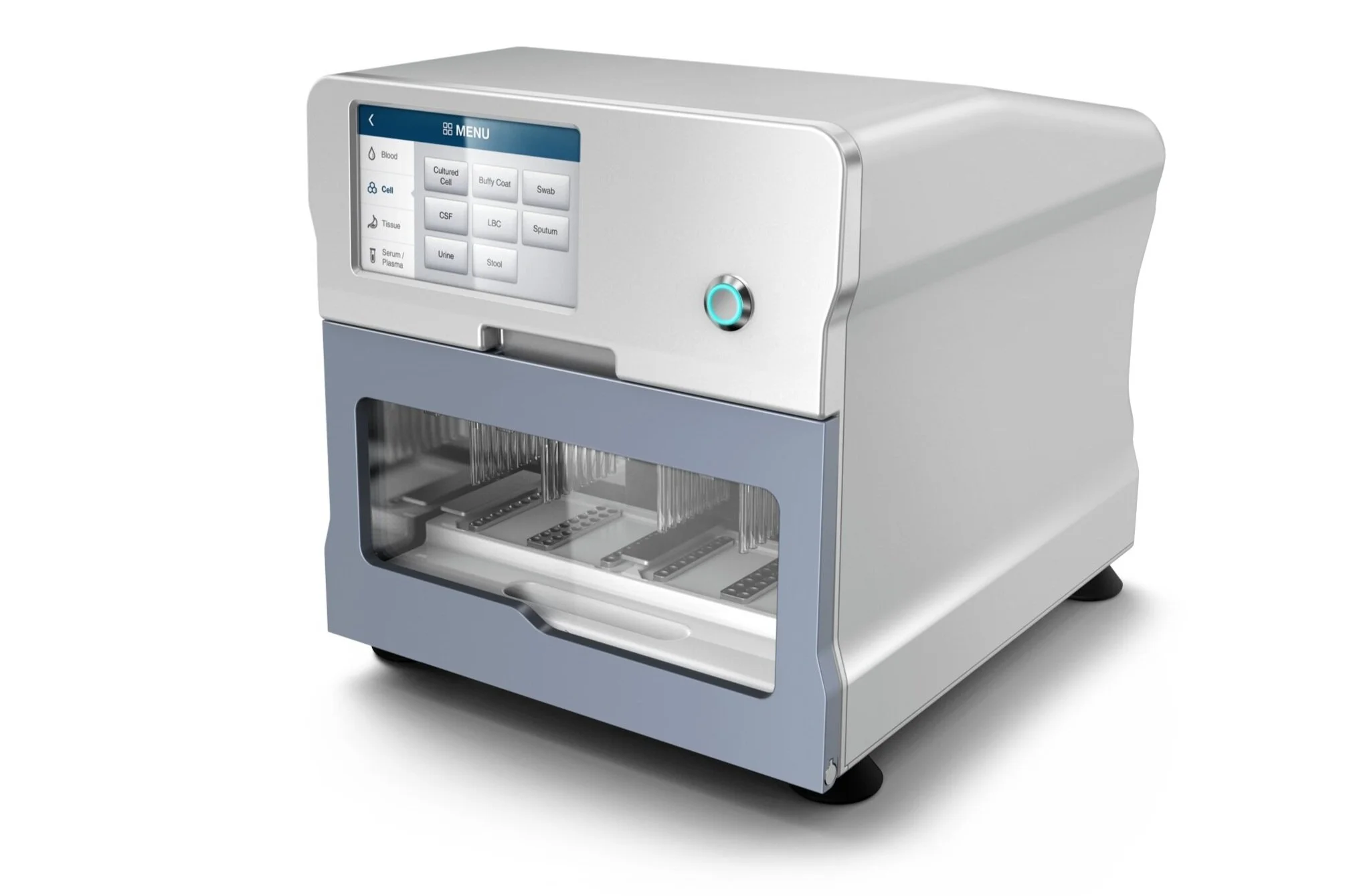

NC-15 Rapid Automated Extraction System

NC-15 Rapid Automated Extraction System

£0.00

1. Automated walk-away solution with extraction time of less than 30 minutes

2. Simple, two-step deskilled process

3. CE marked for In Vitro Diagnostic use

4. Versatile system which supports wet or dry swabs, cultured cells, tissue, sputum, serum and plasma

Learn More

Add To Cart
Homepage > Products > SARS-CoV-2 > NC-15 Rapid Automated Extraction System

Workflow

Workflow
  1. Peel cover off pre-dispensed reagent plate
  2. Add sample and Proteinase K and IEC
  3. Load onto NC15-PLUS machine and run
Machine Processes
  1. Lysis step - sample heated to 60°C
  2. Washing magnetic beads (3 stages)
  3. Dries magnetic beads
  4. Elution Step

Eluted nucleic acids can then be transferred from 6th and 12th columns to microtubes for the next stage of testing.

DNA/RNA Extraction Kit

Kit Performance


Extraction Purity
A260/280
Cultured cell: 1.7~2.1
Whole blood: 1.8 ~1.9
Buffy coat: 1.7~2.1
Yield of Nucleic Acid 90-95%
Extraction Time Less than 30 minutes
Sample Capacity 16 or 32 samples per run
Sample Volumes 200-300 µL
Sample Types Supported Viral Swabs, Sputum, Cultured Cells, Serum, Plasma,Tissue
Storage 5-25°C
Shelf Life 12 Months
Predispensed Kit Contents

16 specimens per plate

Predispensed plate contents per well
- Buffer VLB 600 µL
- Buffer NW1 500 µL
- Buffer NW2 500 µL
- Buffer NW3 500 µL
- Buffer NE 100 µL
- Magnetic Beads 600 µL
Proteinase K 4 each
Storage Buffer 4 each

Machine Specifications

NC-15 Machine Specifications


DNA/RNA Extraction Method Magnetic Bead Method
Number of Samples 16 or 32 samples per run
Processing Time 29 minutes for viral RNA
Touch Monitor 7”
Convenience Functions Self Tests, USB Update
Input Supply
Universal Supply
100~240VAC, 50-60Hz, 1.5A
Output Power +24VDC +3% (150W Maximum)
Power Supply UL/CSA/CE Approved universal power supply with IEC connection
Physical Dimensions 340 x 420 x 345mm (13.88 x 16.53 x 13.58”)
Weight 24kg
Operating Temperature: 10°C to 40°C (50°F to 104°F)
Relative Humidity: 30% to 85% R.H. non-condensing
UV Lamp Life-time 4800 Hours
